Monday, March 26, 2012

Seats & Thwart & Yoke

This past week I worked on setting the seats and thwart in place. I decided to recess the seat carriage bolts so they would not be seen. Therefore I reinforced the inwall under it with an extra 1/2" piece as you can see. This should provide plenty of support. Canoe Craft provides good instructions for setting the seats through the use of a "seat jig". It recommends the seats being 91/2 to 101/2 " off the bottom of the canoe. Once I laid it out I realized that the 4" brass carriage bolts that Noah's sent me were not going to be long enough for the rear seat. I called them and they quickly send me 4, six inch stainless steel carriage bolts for the rear seat. My plan is to finish them underneath with a larger washer and acorn nuts.

The Huron Cruiser plans call for a yoke or thwart in the center and another thwart 30" behind the center. For a canoe 15'9" long only one thwart is necessary. Noah's recommended only one and the two looked crowded. Therefore I prepared the thwart and the yoke to be interchangeable. They can easily be removed simply by loosening 4 nuts and replacing one with the other depending on the paddling needs. The yoke is pretty cool looking even if your not going to portage.
Here's a view from the stern to the bow with the thwart and front seat in place. Things are shaping up well and I'm on schedule for completion by the Paterson Habitat Annual Dinner on April 11.
Today I spent doing all the final sanding of the gunnels, thwart, yoke, seats and cleaning up the entire basement.
I will create a plastic -hopefully dust free- chamber for the final 5 coats of varnish on the inside and out.

Saturday, March 17, 2012

Decks and Outwalls

Last Saturday I got back from Florida where Debra and I watched out grandchildren while Ben & Emily completed the Everglades Challenge. Out of about 60 boats only 17 finished and they were number 14. They worked hard and even did the entire Wilderness Waterway through Everglades National Park. We are very proud of them for their perseverance. So now I'm back home to ministry and building. I completed the decks earlier in the week and installed them between the inwalls.

The decks will double as a carrying handle and I will install stainless steel padeyes under the deck to attack a line to and serve as a tie down point. This will keep the top of the deck and canoe clear and clean.
Preparing and installing the outwalls was a big job. They are made out of 7/8" ash. First I had to make two cuts. The first cut was the length of each outwall to taper the bottom edge from 7/8" to a 5/8" edge. This reduces some weight and looks good. The other taper was the same as on the inwall from 32" from the end and from 7/8" to 3/8". I again used the taper jig and it worked great. Once I got everything sanded and looking straight I had to try dryclamping each outwall to check that everything fit. I also needed to check that the screws I planned to install every 12" did not fall on the screws holding the inwalls. When all looked good I mixed a batch of thickened epoxy with some sanding dust for color and brushed it on.
The whole process took longer than expected but everything worked out well. I used clamps along with the screws and squeese clamps between the scuppers to keep the hull tight to the outwall.
Here you can see the screw holes. They are recessed about 1/4" and will receive a plug. The next step will be to use a beltsander across the inwall, outwall and top of deck to get everything smooth. I'm debating about just varnishing all this or covering it with epoxy first. I will test both out on a piece of ash with a plug.

Saturday, March 3, 2012

Everglades Challenge 2012

Today Ben & Emily launched at 7:00 a.m. from Ft. Desoto Park on the Tampa Bay in the Everglades Challenge 2012. Conditions were difficult to say the least with a 20 plus knot wind coming directly from the south which is the way they are headed. The wind is supposed to change tomorrow night. There are about 80 boats. Here are some pictures from the launch
Here is a short video of their takeoff. You can track them with everyone from the Watertribe tracking map or by themselves from Ben's SPOT page. Debra & I will be watching, praying and waiting for them in Key Largo with Sara and David.

Thursday, March 1, 2012

Installing the Inwalls

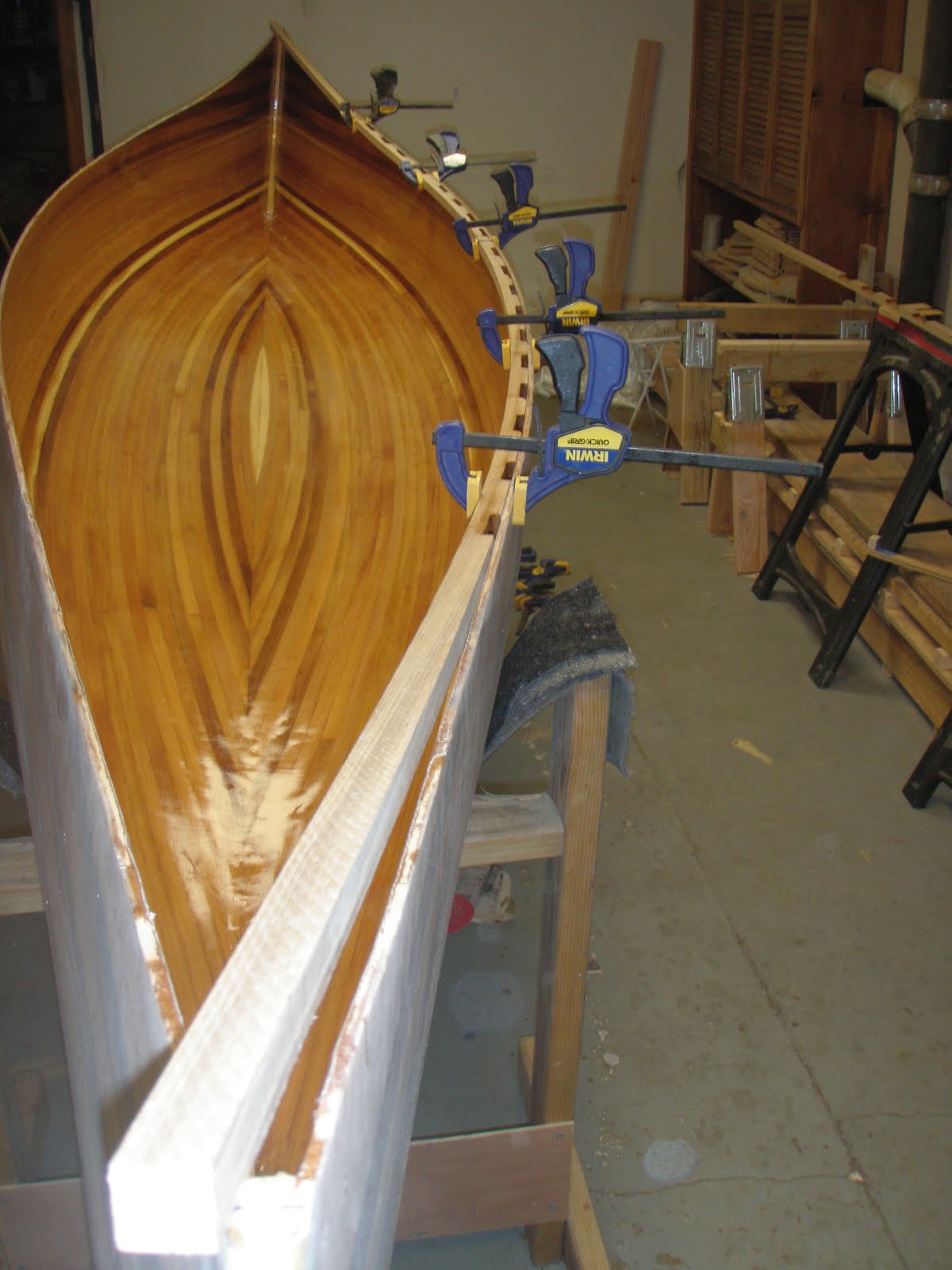

This week I installed the inwalls that I cut the scuppers in last week. Here I am checking a dry fit to cut the ends to length. It was a bit of a wrestling match doing this alone and an extra set of hands would have been welcome.
The plans call for a 30" taper from the stem in. This cut goes from 3/8" to the edge so your basically shaving off 4/8" of an inch over 30". I was trying to figure out how to cut this without messing it up. My son Ben send me the link for a Table Saw Taper Jig from woodworkingtips.com It really worked well and cut long beautiful tapers. The challenge is to make sure your cutting them on the right side.
Here is the one inwall installed and epoxied on. Once I got the center in place the rest clamped down fairly easy. I learned with the first one to do a final dry fit as well. Even though I thought I had it just right once it was popped into place I was 1/16" short on each side. I filled in with a few slivers of ash. The plans also called for using some 1/2" stainless steel screws to hold it into place. I've got 9 screws on each side

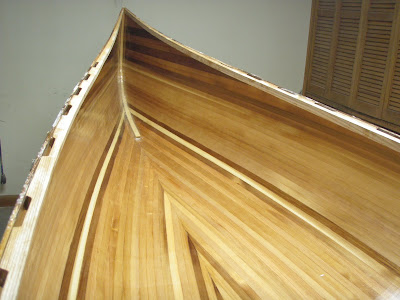

Here is a shot from the inside with both inwalls installed. The taper and the scuppers really look good and I was glad to see the results of the extra work. This inside still needs to be sanded before final coats of varnish but I think its looking pretty good.
Overhead shot of the inside with both inwalls installed.
This is the bow with the light colored piece of cedar marking the waterline. Now we're off to Florida to launch Ben and Emily in the Watertribe Everglades Challenge. They leave Tampa Bay on Saturday and we will drive their SUV, trailer and the kids to Key Largo and wait for them. You can track them off the Watertribe site by clicking on map and their name. Macatawa or Northern Light.
